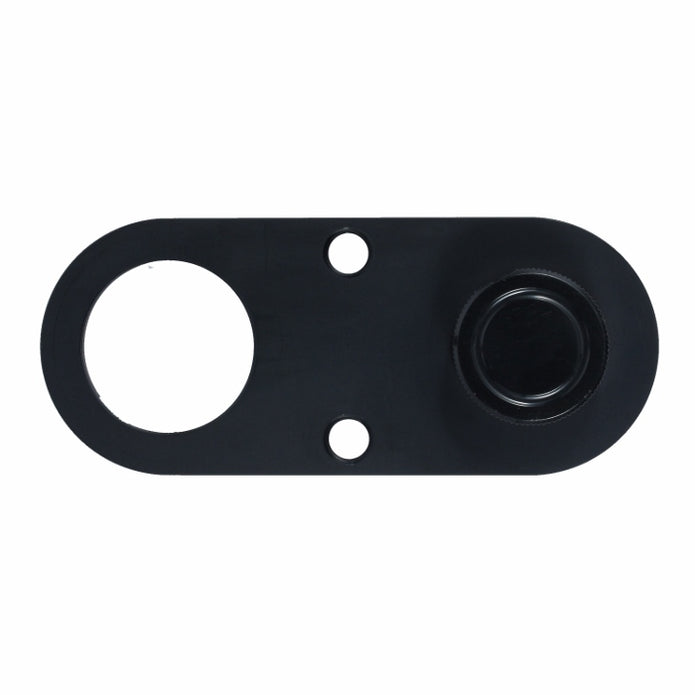

Vixen PF-L II Attachment Bracket

by Vixen
SKU ES35494

Free Shipping US Wide
Easy 30 Day Returns
Best Price Guarantee
Expert Customer Service

$49.99

Notify me when back in stock

CA Residents: Prop 65 Warning(s)

It allows you to use an polar alignment scope PF-LII, polar alignment scope PF-L or SX polar axis scope for the POLARIE U.

The polar scope arm bracket can be attached to the 3/8-inch socket on the bottom (rear) of the POLARIE U after unscrewing the 1/4" to 3/8" conversion socket screw. If this is the case, the removed conversion socket screw can be stored by screwing into the 3/8" holes on the arm bracket to avoid losing.

CA Residents: Prop 65 WARNING(S)

    Attachment thread 34mm in diameter and pitch 0.75mm
    Screw holes 3/8-inch hole x 2
    Usable with Polar alignment scope PF-LII, Polar alignment scope PF-L, SX polar axis scope
    Dimensions 120 x 50 x 5mm
    Weight 74 g / 2.64 oz.



    Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:

    Vixen Electronic Parts: Limited One Year Warranty

    Vixen Mechanical Parts: Limited Two Year Warranty

    Click Here to read more
