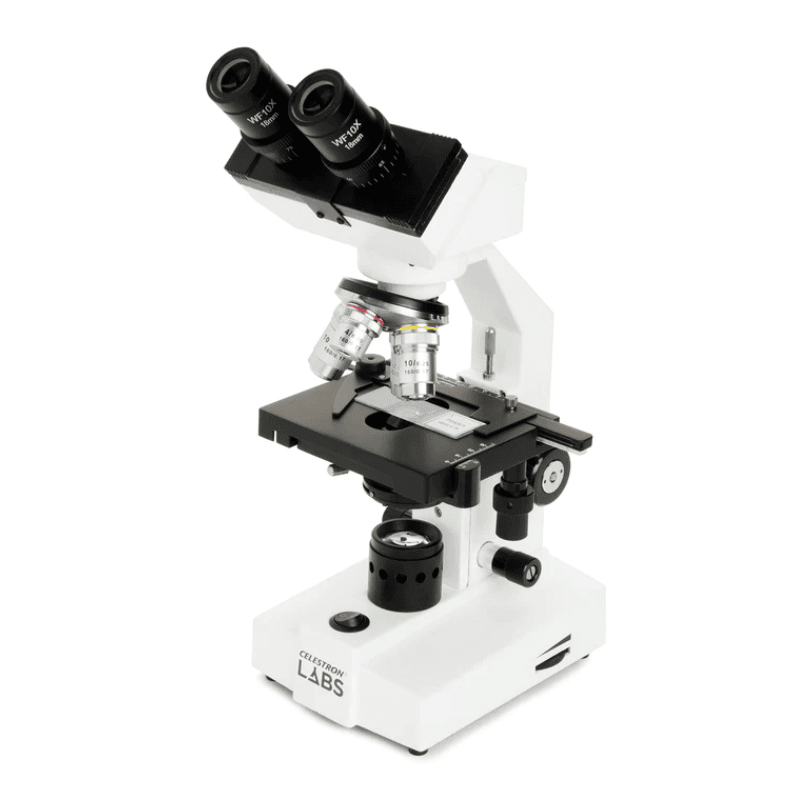

The Celestron Labs CB1000CF Binocular Compound Microscope offers all the essential features you need in a lab-ready microscope at an economical price. The 10x eyepiece and four objective lenses (4x, 10x, 40x, and 100x) allow for magnifications of 40x, 100x, 400x and 1,000x.
An adjustable lower illuminator provides bright, detailed views with true-to-life colors for translucent specimens. This LED illuminator stays cool to the touch even during long viewing periods The Abbe condenser with iris diaphragm adjusts the lower illumination for enhanced viewing. All these features make the CB1000CF an excellent tool for labs, schools, field use and more.
Strong and stable thanks to its all-metal construction, this microscope features coaxial coarse and fine focus knobs, guaranteeing fine-detailed viewing of your specimen slides. The microscope also features a fully adjustable, mechanical stage so you can easily center your specimen slides. The 10 included prepared slides guarantee exciting discoveries right out of the box. Rotate your swiveling binocular head to view the specimen comfortably or share the view with someone sitting across the table. Improve the quality of your magnified images with the included 3 colored filters. There’s even a universal power cord for international use.
GENERAL | |
---|---|
Type of Microscope: | Compound |
Head: | Binocular with 360° rotatable 45° incline and interpipilary distance adjustability |
Eyepiece(s) Magnification: | (2) 10x (with pointer) |
(2) 10x (with pointer) | 70.0° |
Eye relief | 22.0mm |
Eyepiece(s) Diameter: | 23.2mm (.91") |
Nosepiece: | quadruple, rotational |
Objective(s) Type: | Refractive |
Objective(s) Standard: | DIN |
Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
Objective(s) Thread: | 4/5" x 1/36" |
Focus Type(s): | Rack and pinion, coarse and fine focus (individual dials) |
Focus Travel (per rotation): | 0.1mm (.004") |
Magnification Range: | 40x to 1000x (40x, 100x, 400x, 1000x) |
Illumination Type: | LED |
Illumination Position(s): | Lower |
Illumination Adjustability Mechanism: | Dial |
Power Source: | AC Adapter- 100-240V |
Battery Option: | None |
Stage: | Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
Condenser Type: | Abbe with Iris adjustment |
Condenser N.A.: | 1.25 |
Stage Diaphragm: | N/A |
Included Items: | Universal AC Adapter- 100-240V; plugs A, C, G, and I Power adapter cord 3 color filters (blue, white opaque, green) Immersion oil (Type B High-viscosity Cedar wood oil) 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
Solar Warning | |
California Residents | View Proposition 65 Warning |
MANUALS:
Celestron Labs CB1000CF Microscope Manual
Celestron Labs CB1000CF Microscope Quick Setup Guide
OTHER PRODUCT FILES:

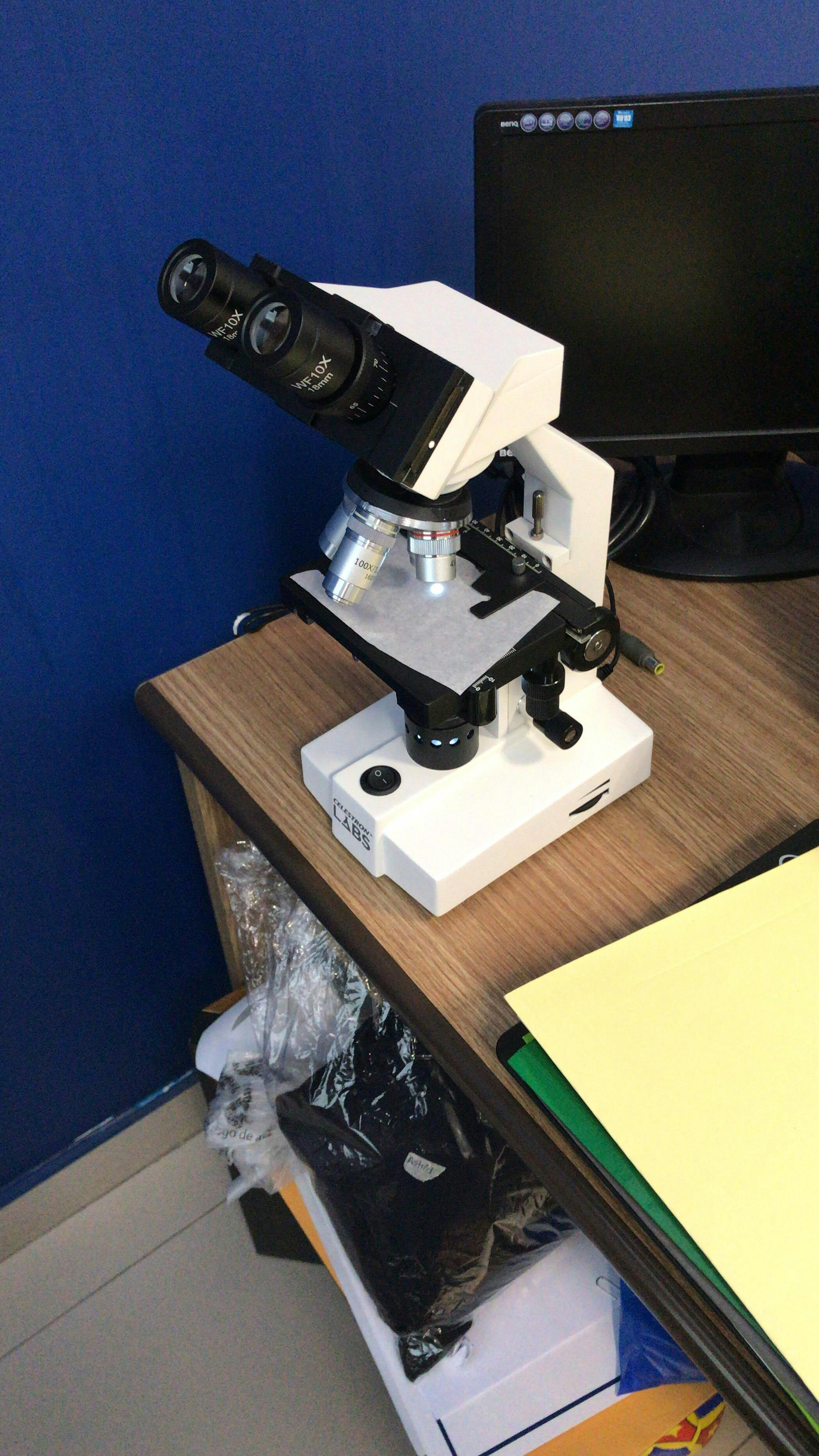

For an inexpensive scope, this one checks all the marks. It has 4 objectives incuding an oil one. The highest power objs have spring loading to protect the lens. It has an aperture wheel with focusing mechanism to control the Fstop and focus of the light entering the slide, as well as a brightness adjustment on the LED source itself. The LED light is bright, not too blue, and doesn't get as hot as a regular bulb.The eyepiece objectives allow independent diopter adjustment so each eye can see clearly with or without glasses, and while there was some dust present, it's not overly distracting. I wish however that they came with rubber cups for eye relief, and dust covers for the lense tops (they do have covers for the end caps)The stage has smooth gearing for moving the slide around in 2 planes, and the slides clip in easily with a spring mounted slide grip, which I greatly prefer to the old school clips that held a slide down on the ends. Changing slides can be done in seconds with one hand.The focusing mechanism is another area I wish they had done differently. There are 2 different focusing knobs for coarse/fine and the fine adjustment focus kind of rides on the coarse adjustment and has limited travel. So you can only adjust fine focus so far before you have to re-center the focus knob, then use coarse focus again. This has you hunting back and forth often and makes focusing a chore. This is made worse by the lenses not being parafocal out of the box. Thus you will be racking focus a LOT as you change objectives and use the scope.
